Wotofo Serpent Mini RTA Review

Bill Herbst
June 24, 2016

Wotofo Serpent Mini Intro

Wotofo is a Chinese designer/manufacturer of rebuildable atomizers, both RDAs and RTAs. Their most well-known product is the Serpent RTA, and the Serpent Mini is its smaller size little brother.

Save 10% below using our coupon code: V360

Save 15%

Wotofo Serpent Mini Specs and Features

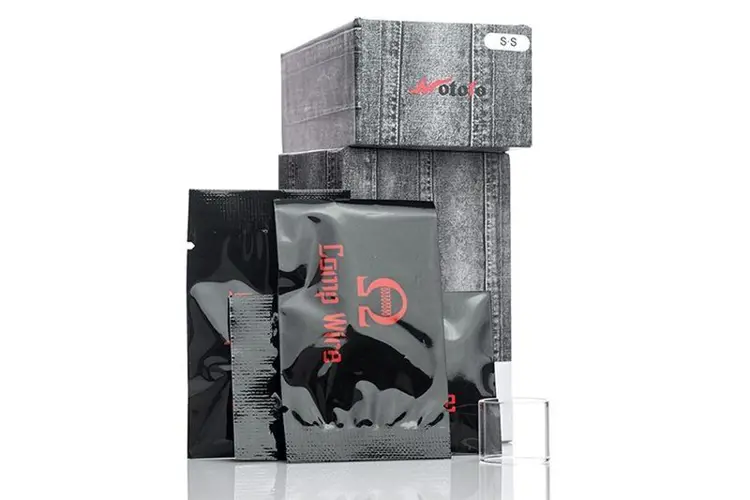

Kit Content

  • One Wotofo Serpent Mini RTA
  • Additional Glass Tank Section
  • Comp Wire Packs
  • User Manual


  • 22mm Diameter
  • Two Post Build Deck
  • Unique 'Lay Down' Terminals
  • Leads Are Horizontally Secured
  • Three Sided Design
  • Easily Fit Large Leads
  • 2mm Wide
  • Single Coil Compatible
  • German Made PEEK Insulation
  • Gold Plated Airflow
  • 4mm Diameter
  • Bottom Airflow
  • Dual Adjustable Airflow Intakes
  • 10mm by 1.5mm Each Airslot
  • Top Fill System
  • 3ml Tank Capacity
  • Dual Channel Slots
  • Independent Build Deck and Reservoir
  • Access Build Deck Without Draining Reservoir

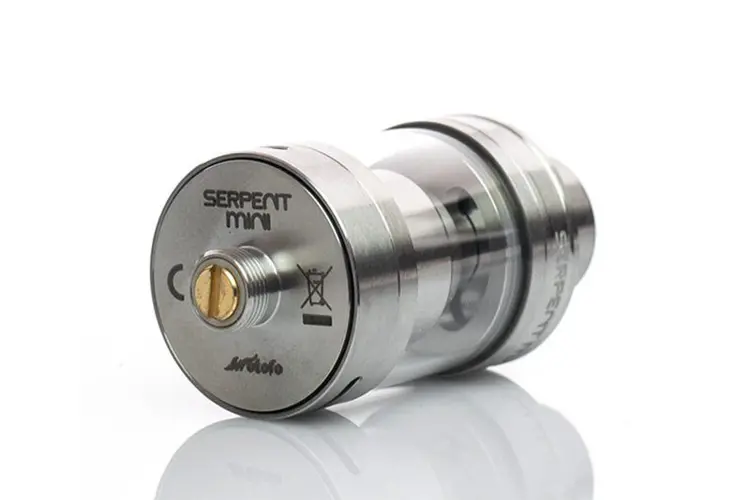

  • Gold Plated 510 Connection

Notable Remarks

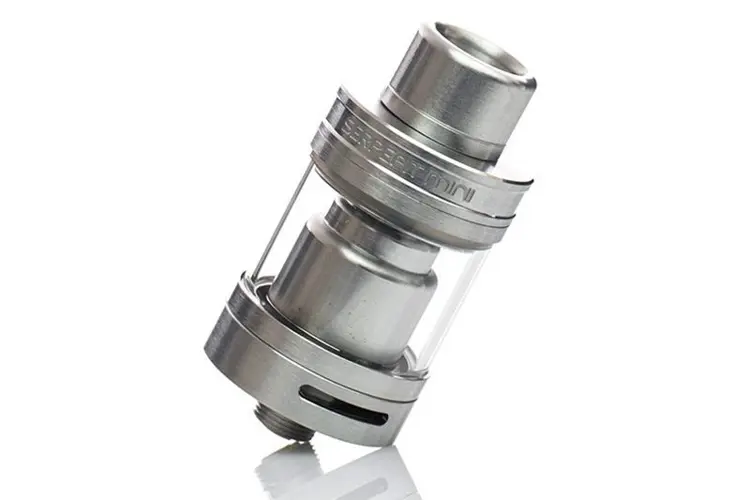

Wotofo Serpent Mini RTA Silver Edition

Prices for the Serpent Mini RTA vary among online vendors from $17–35. Why the wide range, with the highest price more than double the lowest? I don’t know, but there it is. If price matters to you, do some searching online and save yourself some bucks.


Wotofo Serpent Mini RTA Deck 2

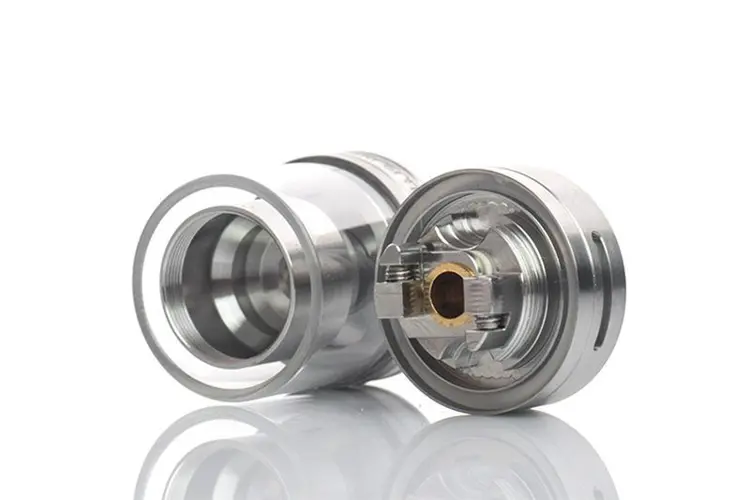

The Wotofo Mini is one of many smaller RTAs on the market. It has a single-coil deck with an unusual, vice-like post setup for securing the coil wires. Building on the deck is easy, although I wouldn’t use any wire smaller than about 28 AWG (.35mm diameter).

The package contains three pre-wound “competition” coils made of twisted wire. I used one. Building on the deck was easy and straightforward. The only critical feature was that the coils fit into slots in the posts rather than holes, so care needs to be taken when tightening the hex screws to pin them that they are centered against the screw, not trapped under it. My build came in at 0.48Ω.

I had no trouble wicking the coil. The two half-cylindrical wick channels are large and require only half the wick end to be placed about halfway down into the eliquid channel. Don’t cram the cotton into the channels, and definitely don’t extend them to the bottom. Where wicking is concerned, the Serpent Mini is definitely a “less is better” tank.

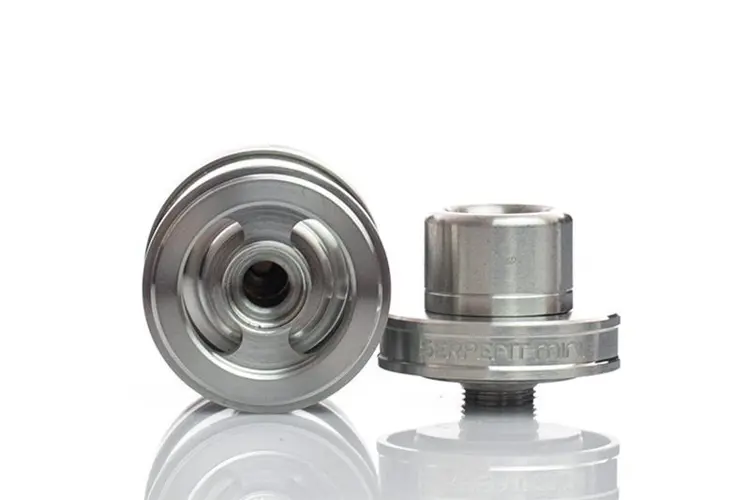

Top filling the tank was a snap. Screw off the tap cap, close the air intake, add eliquid through the wide slots, screw on the top cap about halfway, turn the tank over and open the air intakes, then screw on the top cap until it’s finger tight. a good rule of thumb with this or any other tank is to stop short of completely filling the tank with eliquid. Leave a small air space at the top of the tank. This helps to stabilize the internal pressure and minimize leaking. I got no leaking at all after filling or later.

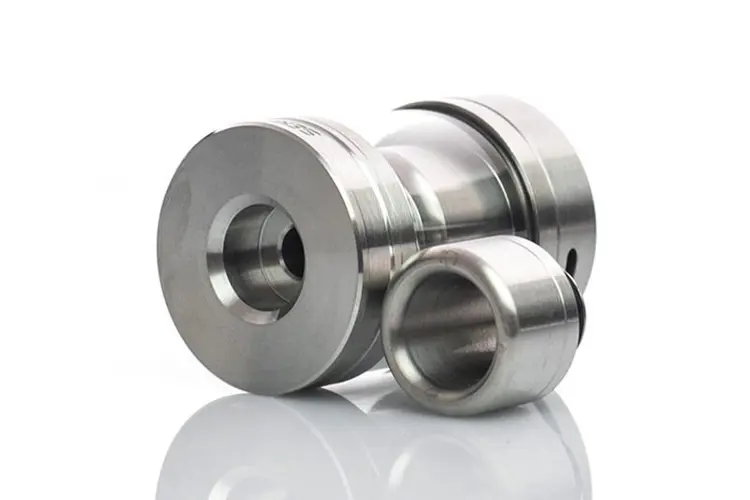

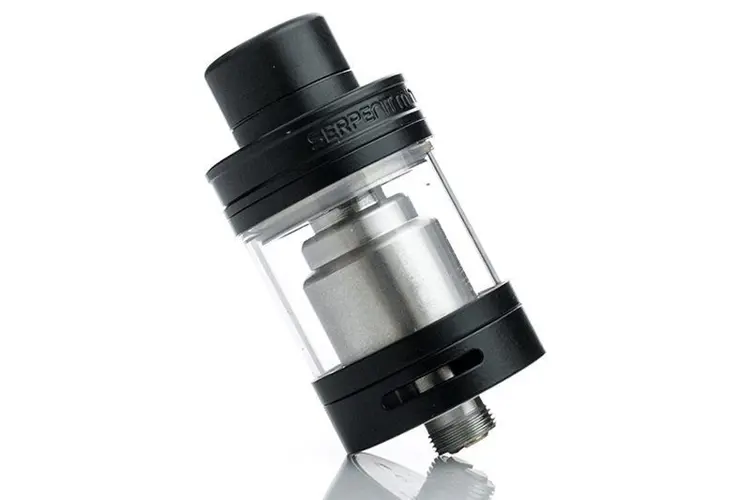

The aesthetics of the black unit I was sent for review were clean and uncluttered, which is my preference. Some versions I saw online had a metal drip tip. Mine was delrin, which I like, but it didn’t seat quite flush into the top cap.

In that vein, general build quality was acceptable if not stellar. Besides the drip tip not seating flush, the metal of the top cap felt slightly thin, and its threads didn’t catch easily with the body on a couple of occasions after refilling. Other times, however, the top cap went back on smoothly. The threads weren’t crunchy, and the machining was competent — I found no burrs or machine oil. I’d rate the quality of parts and manufacturing as mid-range. I’ve seen better, but I’ve also seen far worse.

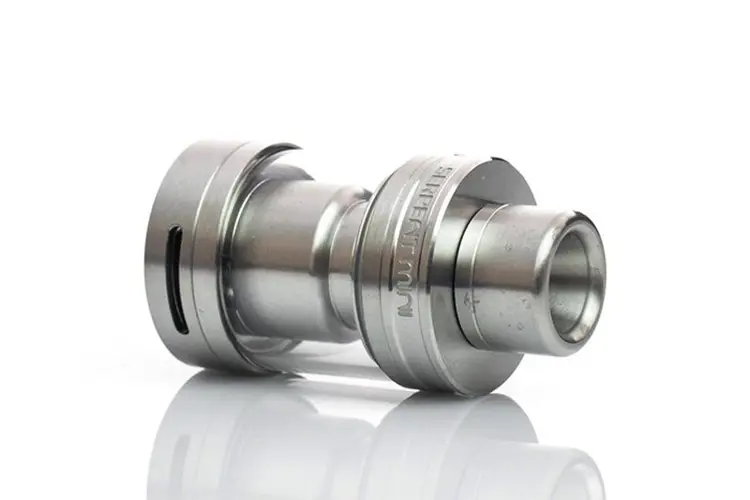

Wotofo Serpent Mini RTA Flat

The Serpent Mini is a tank designed for moderate power. Since the tank is small and single coil, with a very large air hole under the tank and wide air intake slots on the base, less power is required to produce vapor. I started out at 28 watts, which provided decent flavor and a nice amount of vapor, then upped the wattage to 35. Both vapor and flavor increased, and the vape got somewhat warmer. I can imagine that the vapor might get quite warm at 50 or 60 watts. I felt no need to even try more than 40 watts, however, since that modest level of power produced an entirely satisfactory vaping experience.

The draw is slightly restrained — even with the air intake slots fully open, the Serpent Mini doesn’t have the non-resistant airiness of an RDA. Still, this is clearly a direct-lung tank. Mouth-to-lung vapers need not consider the Serpent Mini. It’s not designed for them.

Wotofo designed the Serpent Mini without eliquid flow control, but that’s completely understandable, given the tank’s small size. Small size means small eliquid capacity, of course. Rated capacity is 3ml, but in reality it’s closer to 2.5ml. If you fill the tank as I do, about 4/5 full, that 2.5ml is reduced to a bit more than 2ml of eliquid. While not a juice-guzzler, the Serpent Mini’s limited capacity will necessitate frequent refills, even at the moderate 35–40 watts that I found so satisfying. If you like vaping all day without refilling, then the Serpent Mini — and small tanks in general — aren’t for you, anyway.


Smaller, single-coil RTAs are regaining market share, and Wotofo’s Serpent Mini is an competent entry in the field. I especially appreciated the straightforward and simple set up, the complete lack of leaking, and the full vaping experience at moderate power.

Recommended, especially if the price is reasonable.

Save 10% below using our coupon code: V360

Save 15%
My name is Bill. I’ve been a dedicated vaper for five and a half years, having ended a 35-year addiction to tobacco cold-turkey on my first day of vaping. I live on the Oregon coast, in the tiny town of Florence, one huge sand dune away from the Pacific Ocean.
Notify of
most voted
newest oldest
Inline Feedbacks
View all comments
5 years ago

Just this about 5 days ago. Love it. Expect it leaks when I fill it. However I haven’t been doing it the way you’ve mentioned, I’ve been filling it like a normal tank. I’ll use the steps you’ve mentioned above and see how I go

Bill Herbst
Bill Herbst
5 years ago
Reply to  Daiz

Good luck, Daiz!

Everyone hates leaking tanks. Spills are inevitable, but leaks are just downright aggravating.

For instance, the Augvape Boreas is one of my favorite RTAs, but I HATE the fact that it leaks after being completely filled. Leaving a visible air space in the tank hasn’t solved the Boreas’ leaking completely, but it’s less now. The same trick has worked well with the little Wotofo Serpent Mini. I’ve had a little leaking with it, but not much.

Bill Herbst
Bill Herbst
5 years ago
Reply to  Bill Herbst


I just tried filling my Serpent Mini right to the top, and — sure enough — it leaked through the air slots until I’d vaped enough eliquid to create an air space inside the tank.

5 years ago
Reply to  Bill Herbst

Not sure how but it stopped leaking. I don’t know if its because I threaded the cotton to be longer or if it’s because I changed the way I’m filling. I fill by:
1) close airflow
2) open top fill screw
3) fill up
4) screw back on top fill lid
5) turn upside-down, tighten lid
6) open airflow, leave for 1 second
7) vape! Without leakage!

Hope this helps, then again it could be the longer cotton

3 years ago
Reply to  Daiz

linking like a river, lousy product. sorry i bought it.

5 years ago
Reply to  Daiz

doesn’t work, leaks after 10 minutes

5 years ago

I just have a serpent mini tank about a week ago, I’m new in the world of vaporizers, I combined it with eleaf Ijust 2 and it felt so great, no leaking, good flavor, good vapor.

Aflah Amin
Aflah Amin
5 years ago
Reply to  Hart

is that good for fruity or flavour ? or it just for creamy ??

5 years ago

which resistence was in the test? i have a 0.45 (the ones that comes with him) and i literally cant pass 20w, lung hits longer than 5 seconds go dry hit, AWFUL dry hits. Flavor is good and stuff but over 25w it gets ridiculously hot and dry hits after 3 seconds, i tried less cotton, more cotton, always dry hits the sh8t out of my throat. First 5 refills i’ve had no leaks, but now its inevitable, niagara falls out of the air vents (i close the air vent fill, then i start to turn the cap on again,… Read more »
